Two valve manifolds-2VA

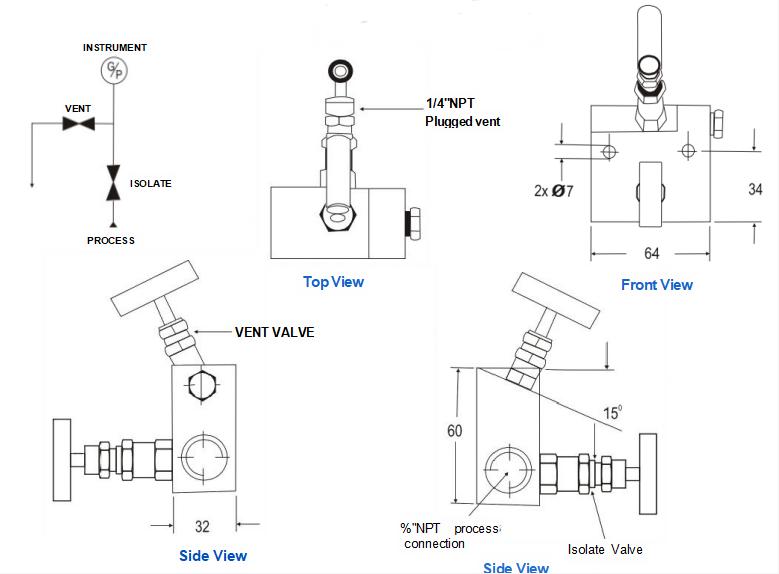

With threaded vertical port inlet and female outlet.The vent/test connection is positioned on the front

side.The venting bonnet is positioned on the right hand side and the isolating bonnet on lefthand side.



Standard connection

Product

Process side

Instrument side

Vent/Test

2VT

1/2"NPT male

1/2"NPT female

1/4"NPT female



The weld prepared types are available with female plain end -suitable for socket weld.  Anti-tamper bonnet-special design on request with locking arrangement if desired
