with threaded horizontal port inlet on the front side and Flange outlet on the back side,test connection on the body.The isolating bonnet are positioned on the left and right hand side and the Equalizing Bonnet is positioned on the top.
Standard connection
|
Product |
Process side |
Instrumentside |
Vent/Test |
|
2VQ |
1/2"NPT female |
Flange |
1/4"NPT female |

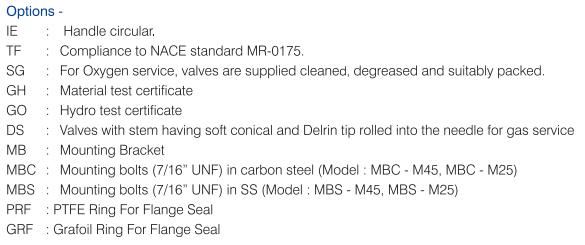

The weld prepared types are available with female plain end -suitable for socket weld. Anti-tamper bonnet-special design on request with locking arrangement if desired
