Monoflange Double Block and Bleed Valve with needle type pattern valve with non rotating spindel tip for positive bublle tight shut off function. Inlet 150/600# Flange, outlet NPT or BSP rotable. Vent/test connection NPT female, isolating bonnet at front & right side and venting bonnet at left-instrument connection on top or side (multifunctional). It is supplied with INLET below mention Flange sizes.

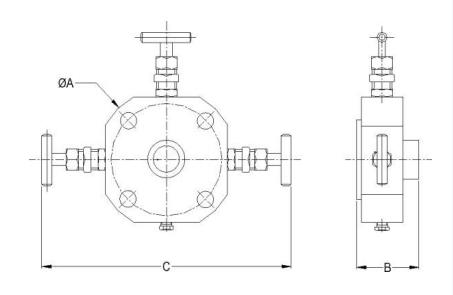

Dimensions in mm.
Monoflange Valves offer a compact alternative to traditional multi-valve assemblies,reducing
weight,cost and the number of potential leak paths PTFE or Graphoil Stem Seal.
Outlet/Drain Screwed NPT-BSPP-BSPT. Inlet Flanged RF or RTJ.
Other materials on request.
Material available:SS304-SS316-CARBON STEEL-MONEL400-MONEL 500.
For further details please contact factory.
