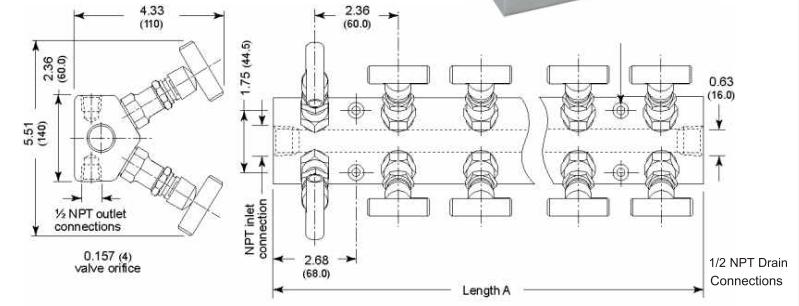

This Distribution Manifold valves are made by extruded stainless steel body rated for 6000 psig(414 bar) working pressure.Fewer potential leak points than conventional distribution manifolds.Compact,versatile manifold for gas and liquid applications.Mounting holes through the manifold to reduce stress on the piping system.Four to eighteen needle valves/outlet connections.
Standard connection
|
Product |
Inlet Connection |
Outlet Connection |
Drain Connection |
|
DMV |
1/2"NPT female |
1/2"NPT female |
1/2"NPT female |
·Additional materials,options,and accessories are available.
·Every valve is hydrostatically tested at ambient temperature.
Safe Product Selection
When selecting a product,the total system design must be considered to ensure safe,trouble-free performance. Function,material compatibility,adequate ratings, proper installation,operation,and maintenance are the responsibilities of the system designer and user.
Caution:Do not mix or interchange parts with those of other manufacturers.
