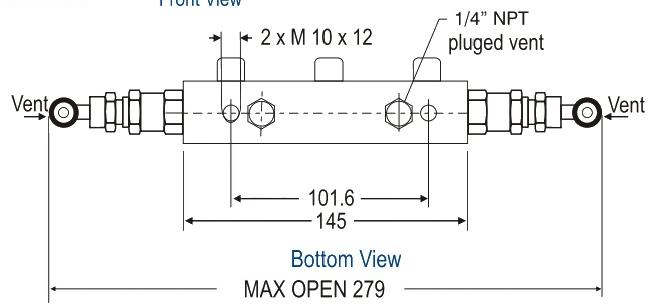

Model designed for complete isolation of instruments with NPT female inlets /outlets.Vent/test connection at bottom;equalizing bonnet angular on top-isolating bonnets angular on top venting bonnets at left and right side.
Standard connection
|
Product |
Process Side |
Instrument Side |
Vent/Test |
|
5VV |
1/2"NPT female |
1/2"NPT female |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
