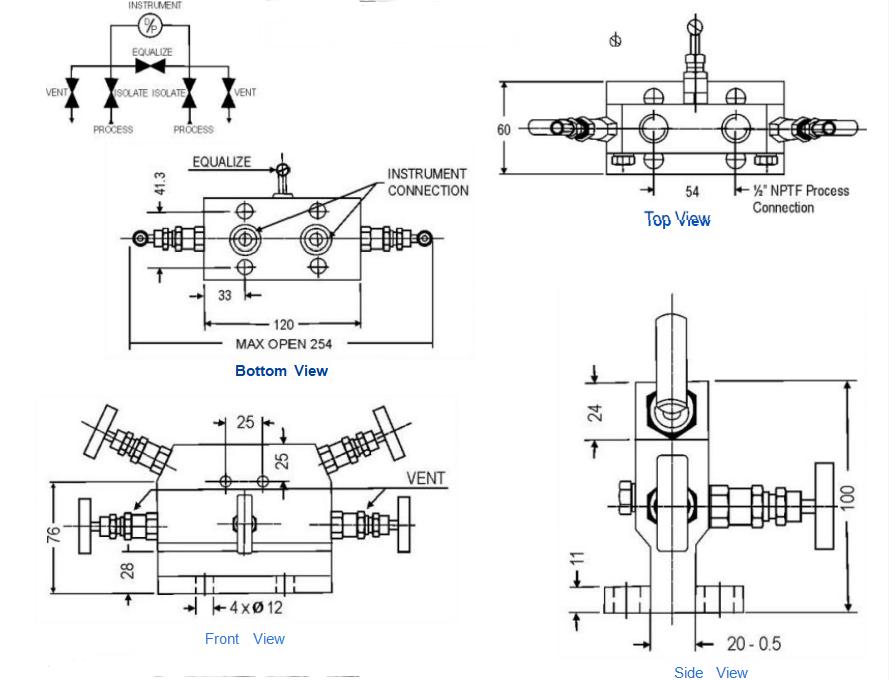

With threaded horizontal port inlets and Flange port outlets.The vent/test ports are positioned on the bottom side.The isolating and venting bonnets are positioned on the left and right hand side and the equalizing bonnet is positioned on the topside.Designed for direct mounting.
Standard connection
|
Product |
Process Side |
Instrument Side |
Vent/Test |
|
5VT |
1/2"NPT female |
flanged |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
