Five valve manifolds-5VS

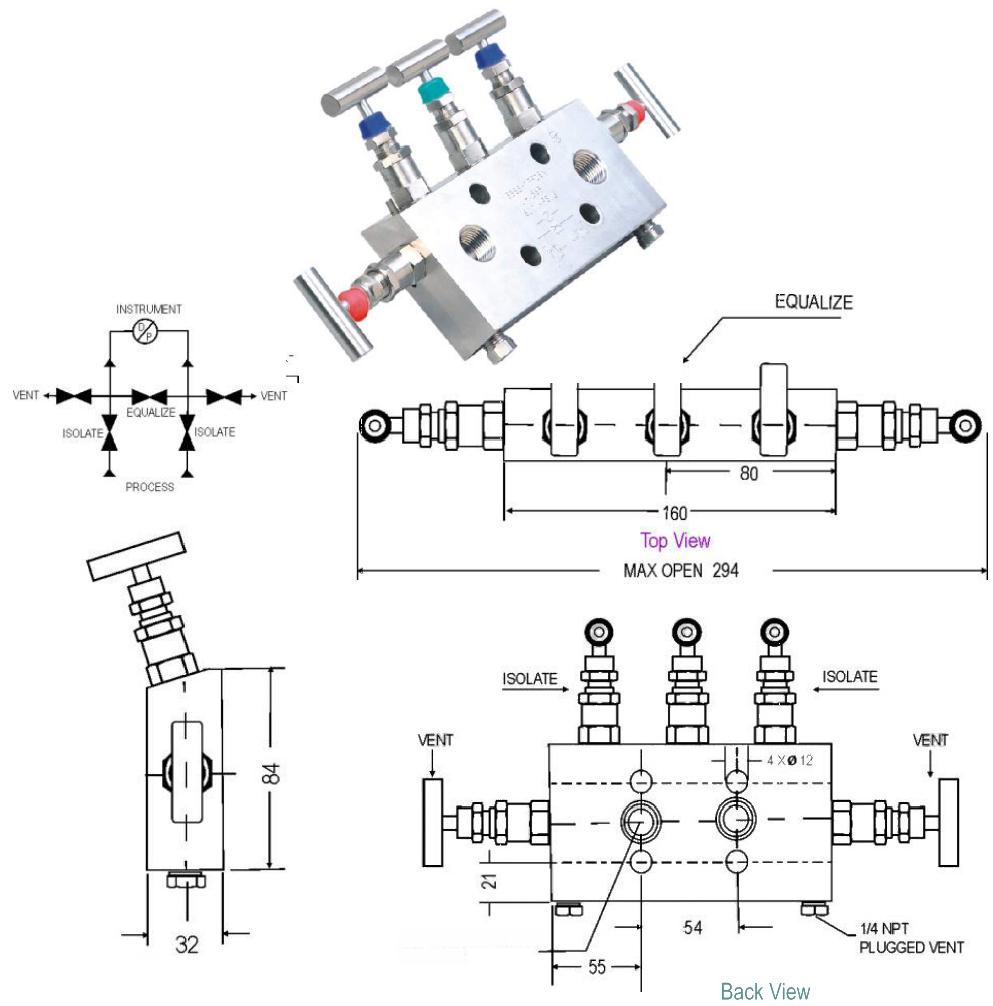

With   threaded   horizontal  port   inlets  and Flange outlets.Two vent/test   connections    are   positioned on the bottom of   the body.The    isolating   and    equalizing   bonnets   are   angular positioned   on the   top   side.The vending   bonnets    are   positioned on   the    left   &right    hand side.Designed    for   direct    mounting.

Standard connection

Product

Process side

Instrumentside

Vent/Test

5VS

1/2"NPT female

flange

1/4"NPT female

 ●The  weld  prepared  types  are  available  with  female  plain  end  -suitable  for  socket  weld.

 ●Anti-tamper  bonnet -special  design  on  request  with  locking  arrangement  if  desired.
