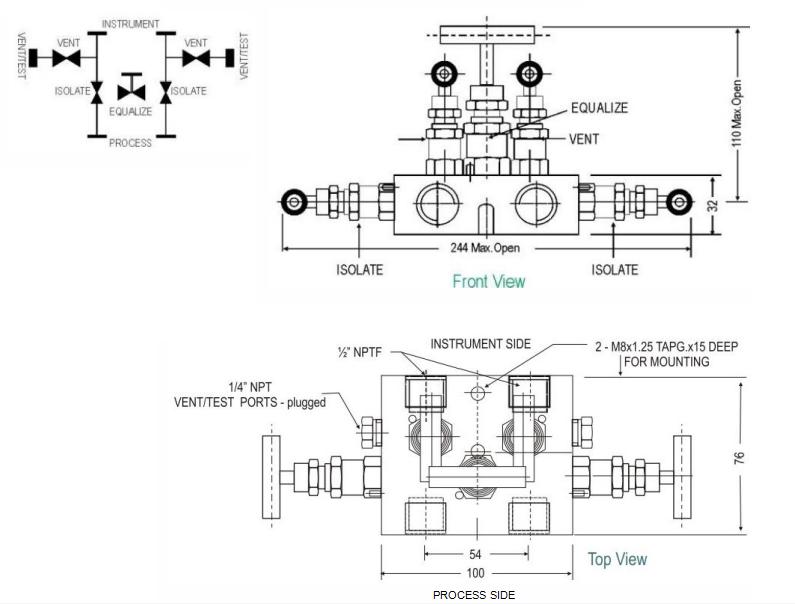

With threaded female ports on front side and back side for instrument and process connections.The two vent bonnets along with equalizing bonnet are positioned on the top side.The two isolation bonnets are positioned on left and right hand sides
Standard connection
|
Product |
Process Side |
Instrument Side |
Vent/Test |
|
5VR |
1/2"NPT female |
1/2"NPT female |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
