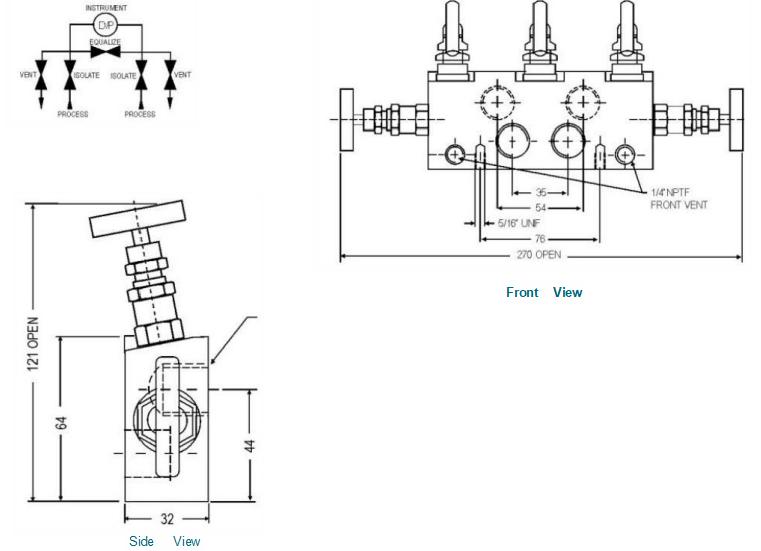

Series designed for complete isolation of instruments-inlets NPT female at front,2 outlets NPT female at back side.Vent/test connection at front,equalizing bonnets (2)angular top,isolating bonnets at left and right side,venting bonnet angular on top.
Standard connection
|
Product |
Process Side |
Instrument Side |
Vent/Test |
|
5VQ |
1/2"NPT female |
1/2"NPT female |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
