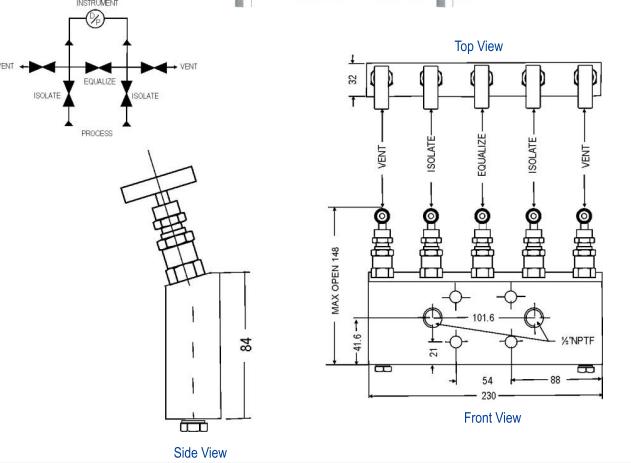

With threaded horizontal port inlets and Flange port outlets.Three vent/test connections are positioned on the bottom of the body.The isolating,venting and equalizing bonnets are angular positioned on the top designed direct mounting.
Standard connection
|
Product |
Process Side |
lnstrument Side |
Vent/Test |
|
5VP |
1/2"NPT female |
flange |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
