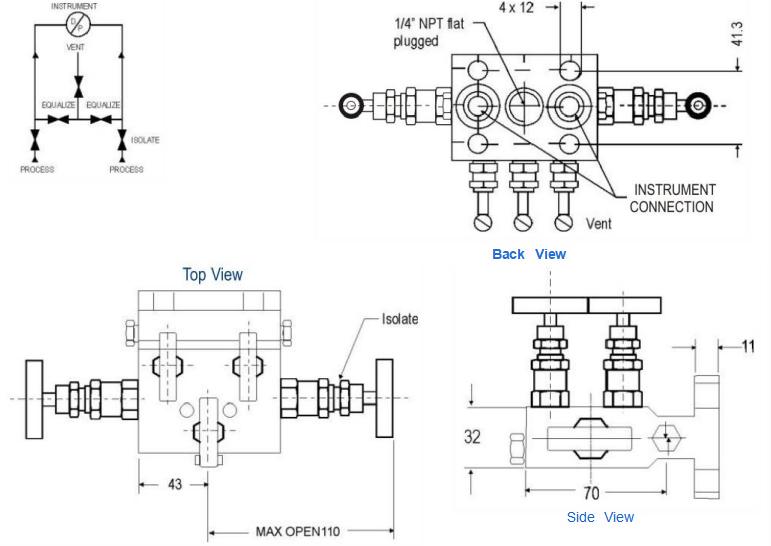

Five Valve Manifold Special Series to accommodate any half DIN 19213 interface complaint pressure transmitter.2 inlets NPT female at front and 2 outlets Flange at back side DIN 19213.Vent/teat connection at front,equalizing bonnets at top side,isolating bonnets at left and right side-venting bonnet at top.
Standard connection
|
Product |
Process Side |
Instrument Side |
Vent/Test |
|
5VN |
1/2"NPT female |
flanged |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
