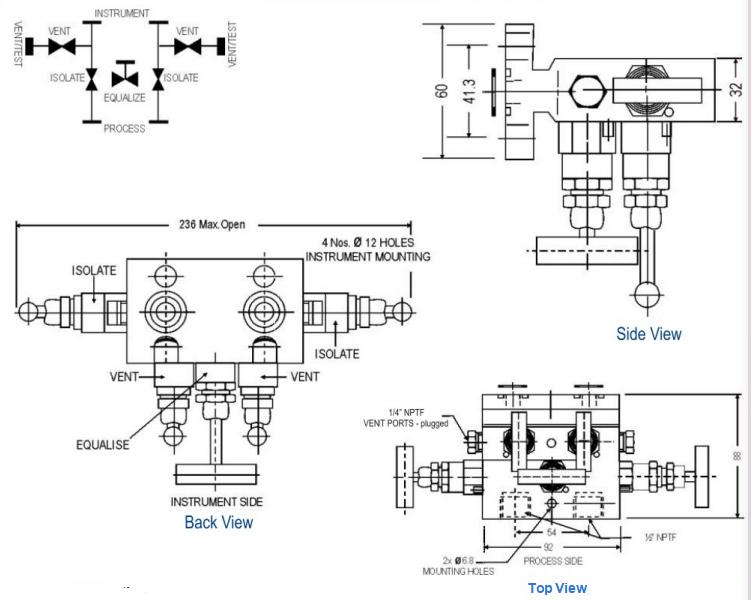

With threaded female ports on front side for instrument connection along with extended Flange for process connection.The two vent bonnets along with equalizing bonnet is positioned on the top side. The two isolation bonnets are positioned on left and right hand sides.
Standard connection
|
Product |
Process Side |
InstrumentSide |
Vent/Test |
|
5VK |
1/2"NPT female |
Flange |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
