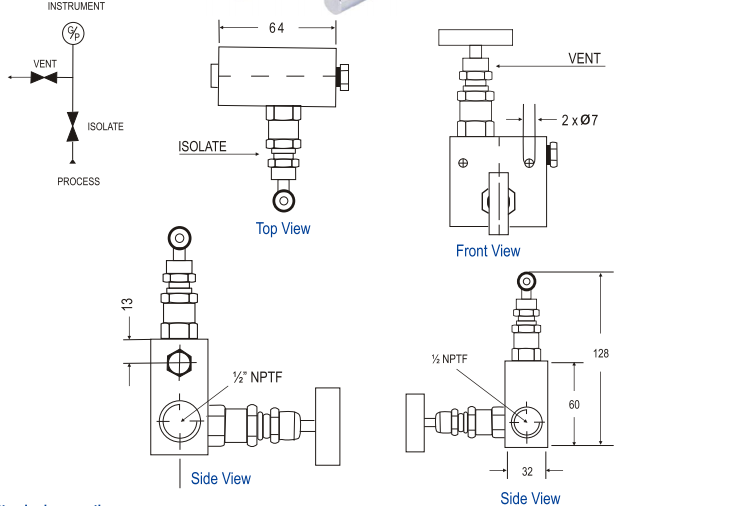

With threaded horizontal port inlet,outlet and vent/test connection on the left hand side.The venting bonnet is positioned on the top and the isolating bonnet on the front.
Standard connection
|
Product |
Process side |
Instrument side |
Vent/Test |
|
2VH |
1/2"NPT female |
1/2"NPT female |
1/4"NPT female |
The weld prepared types are available with female plain end -suitable for socket weld. Anti-tamper bonnet-special design on request with locking arrangement if desired.
