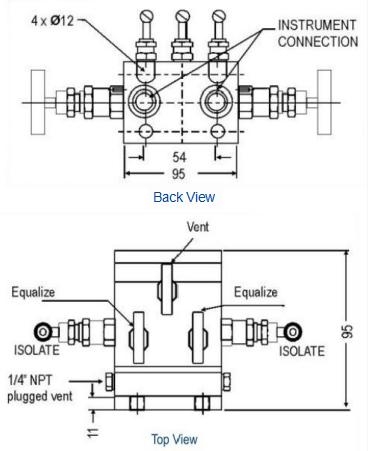

With Flange horizontal port inlets and Flange port outlets.The vent/test ports are positioned on the bottom side.The isolating and venting bonnets are positioned on the left and right hand side and the equalizing bonnet is positioned on the topside.Designed for direct mounting.
Standard connection
Product |
Process Side |
InstrumentSide |
Vent/Test |
5VH |
Flange |
Flange |
1/4"NPT female |
IE :Handle circular.
TF :Compliance to NACE standard MR-0175
SG :For Oxygen service,valves are supplied cleaned,degreased and suitably packed.
GH:Material test certificate
GO :Hydro test certificate
DS :Valves with stem having soft conical and Delrin tip rolled into the needle for gas service
MB :Mounting Bracket
MBC :Mounting bolts (7/16"UNF)in carbon steel (Model:MBC-M45,MBC-M25)
MBS :Mounting bolts (7/16"UNF)in SS(Model:MBS-M45,MBS-M25)
PRF :PTFE Ring For Flange Seal
GRF:Grafoil Ring For Flange Seal
BLD4 :Bleeder 1/4”NPT(Male)
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
