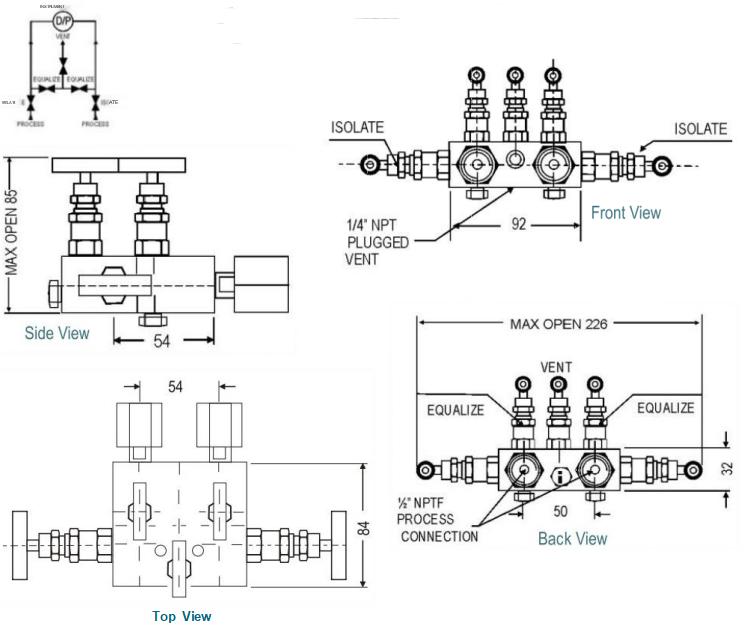

Series for differential pressure gauges with 2 inlets NPT female at bottom and 2 outlets with rotating nuts on top side. Also available in 50mm tap spacings Series-5VD50.
Standard connection
|
Product |
Process side |
Instrumentside |
Vent/Test |
|
5VD |
1/2"NPT female |
/2"BSP Rotatable nuts |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
