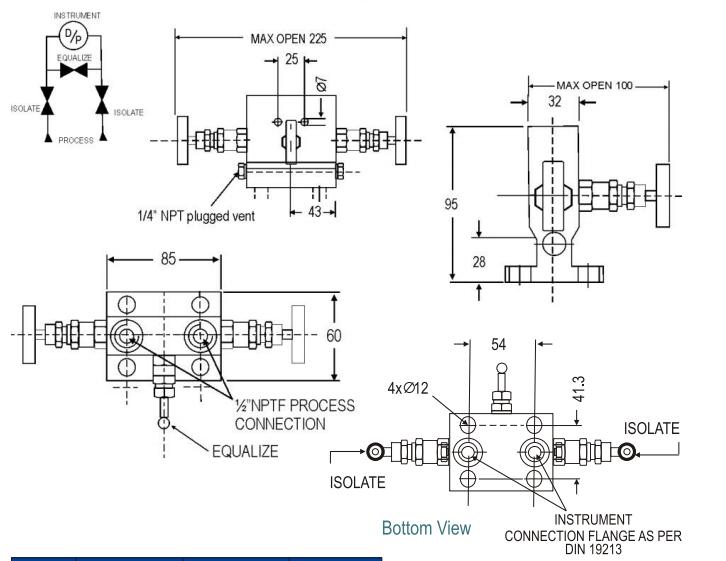

With threaded horizontal port inlets on the front side and Flange outlets on the back side.Two test connections positioned on the left and right hand side of the body.The isolating bonnets are positioned on the left and right hand side and the equalizing bonnet is positioned on the top.
Standard connection
|
Product |
Process side |
Instrument side |
Vent/Test |
|
3VT |
1/2"NPT female |
Flange |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
