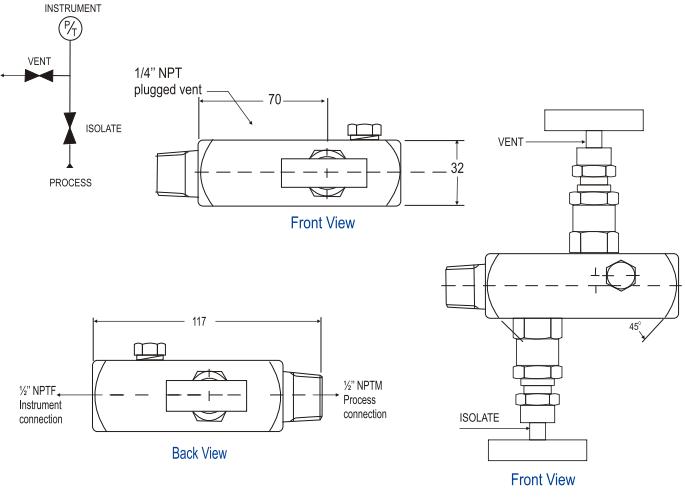

With threaded vertical port inlet and female outlet.The vent/test connection is positioned on the front side.The venting bonnet is positioned on the right hand side and the isolating bonnet on lefthand side.
Standard connection
|
Product |
Process side |
Instrument side |
Vent/Test |
|
2VT |
1/2"NPT male |
1/2"NPT female |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
