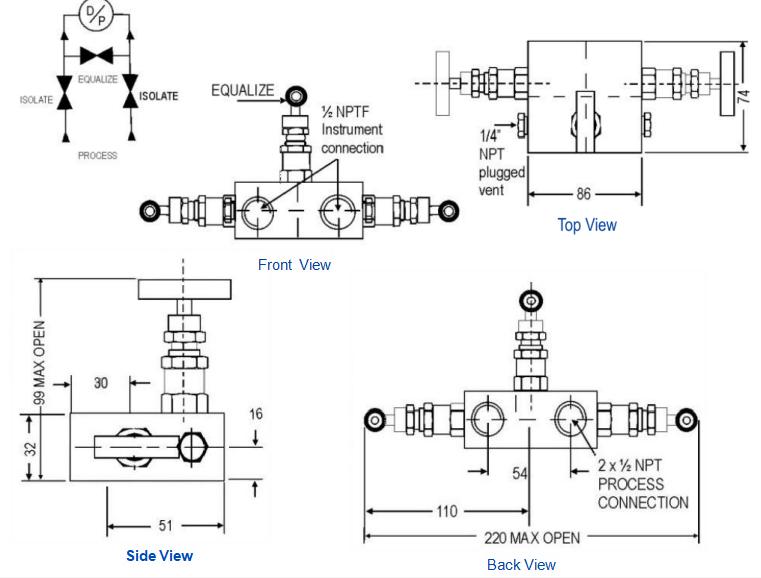

With two threaded vertical port inlets and outlets,both test connections are positioned on the left and right hand side.The two isolating bonnets are positioned on the left and right hand side and the equalizing bonnet is positioned on the front.

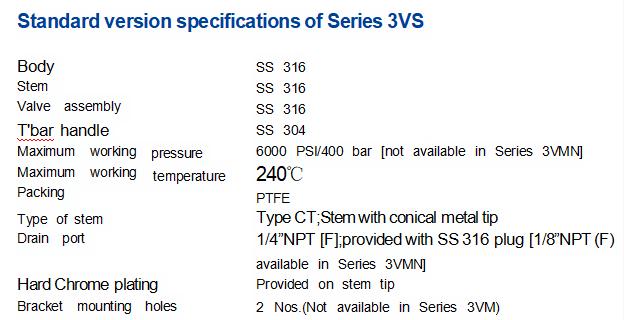

Standard connection
|
Product |
Process side |
Instrument side |
Vent/Test |
|
3VS |
1/2"NPT female |
1/2"NPT female |
1/4"NPTfemale |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
Options -
IE :Handle circular.
TF :Compliance to NACE standard MR-0175
SG :For Oxygen service,valves are supplied cleaned,degreased and suitably packed.
GH :Material test certificate
GO :Hydro test certificate
DS :Valves with stem having soft conical and Delrin tip rolled into the needle for gas service
MB :Mounting Bracket
MBC:Mounting bolts (7/16”UNF)in carbon steel (Model:MBC-M45,MBC-M25)
MBS:Mounting bolts (7/16”UNF)in SS (Model:MBS-M45,MBS-M25)
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
