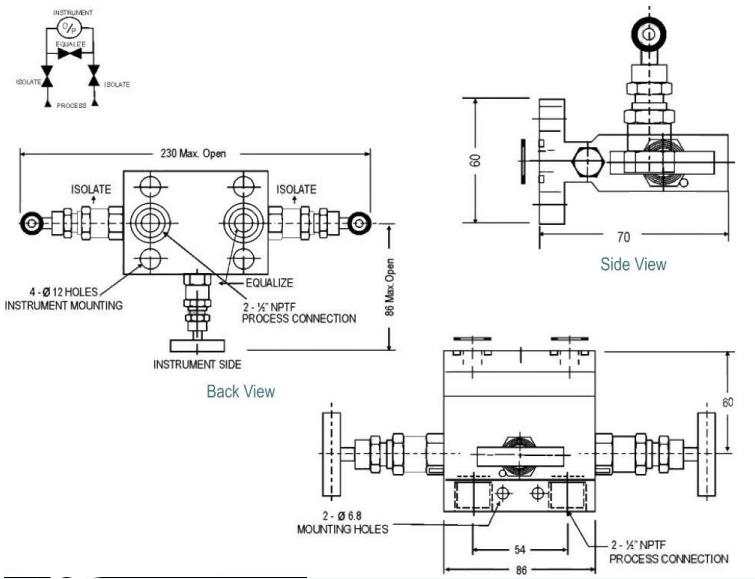

With threaded horizontal port inlet on the front side and Flange outlet on the back side without test/ vent connection.The isolating bonnets are positioned on the left and right hand side and Equalizing bonnet is positioned on the top.
Standard connection
|
Product |
Process side |
Instrumentside |
|
3VQ |
1/2"NPT Female |
Flange |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
