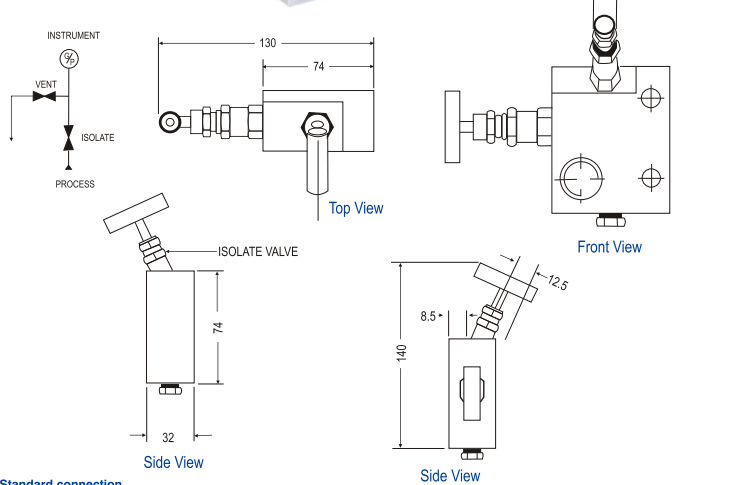

With threaded horizontal port inlet with a Flange outlet instrument connection. A vent/test port on base. The venting bonnect is positioned on the left hand side and the isolating bonnet angular on the top.
Standard connection
|
Product |
ProcessSide |
lnstrument Sida |
Vent/Test |
|
2VF |
1/2"NPT female |
Flanged |
1/4"NPT female |
