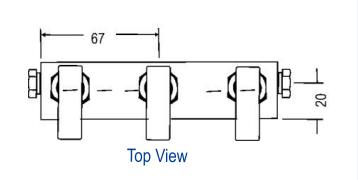

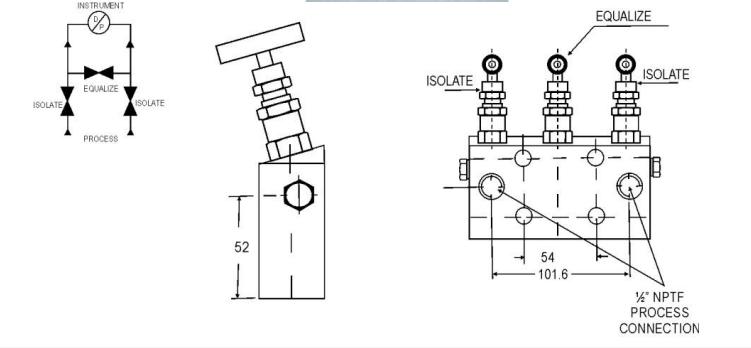

With threaded horizontal port inlets positioned on the front and Flange outlets on the backside.The test connections are positioned on the left and right hand side.The isolating bonnets and the equalizing bonnet are positioned angular on the top of the body.
Standard connection
|
Product |
Process side |
Instrument side |
Vent/Test |
|
3VP |
1/2"NPT female |
Flange |
1/4"NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
