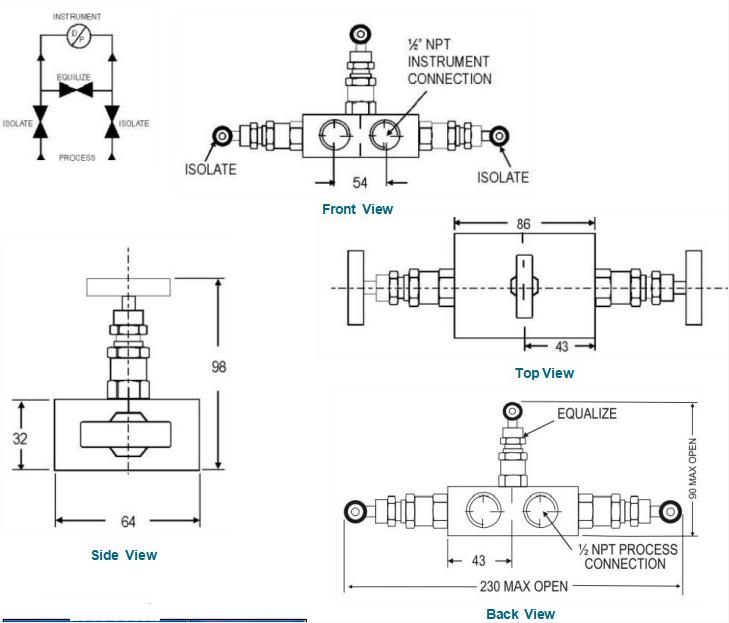

With threaded vertical port inlets and outlets.The isolating bonnets are positioned on the left and right hand side and the equalizing bonnet is positioned on the front.This manifold is specially designed as miniature valve to be remote mounted.

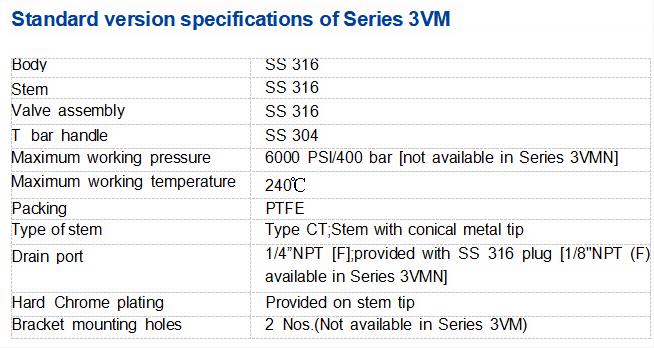

Standard connection
|
Product |
Process side |
Instrument side |
|
3VM |
1/2"NPT female |
1/2”NPT female |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
