Three valve manifolds-3VD

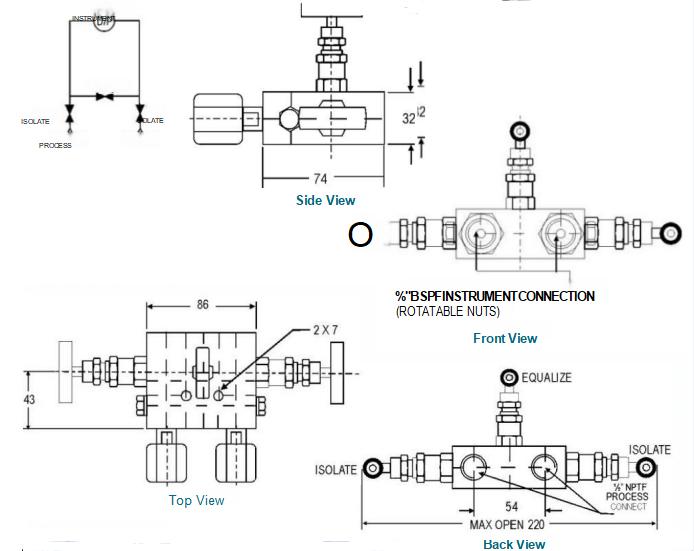

Three valve manifold or differential pressure gauges.Two horizontal inlets NPT female at bottom side.    Two outlets with rotating for nuts on topside and vent/test connection ontop.Equalizing bonnet at front, isolating bonnets at left and right hand side.Also available in 50mm tap spacings Series -3VD50.


Standard   connection

Product

Process side

Instrumentside

Vent/Test

3VD

1/2"NPT Female

/2"BSP Rotatable nuts

1/4”NPT Female


 ●The  weld  prepared  types  are  available  with  female  plain  end  -suitable  for  socket  weld.

 ●Anti-tamper  bonnet -special  design  on  request  with  locking  arrangement  if  desired.
