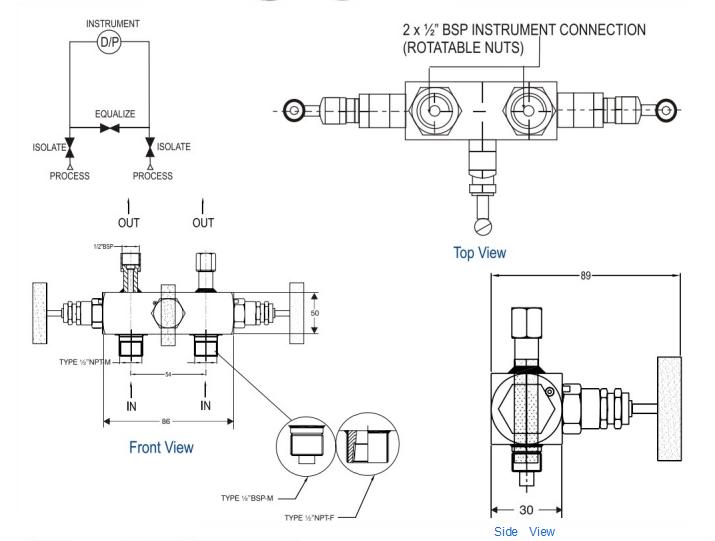

Three valve manifold or differential pressure gauges.Two horizontal inlets NPT male at bottom side.
Two outlets with rotating for nuts 1/2"BSP Fon topside.Equalizing bonnet at front,isolating bonnets at left and right hand side. Also available in 50mm tap spacings Series -3VC50.
Standard connection
|
Product |
Process side |
Instrument side |
|
3VC |
X"NPT male |
/2"BSP Rotatable nuts |
●The weld prepared types are available with female plain end -suitable for socket weld.
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
