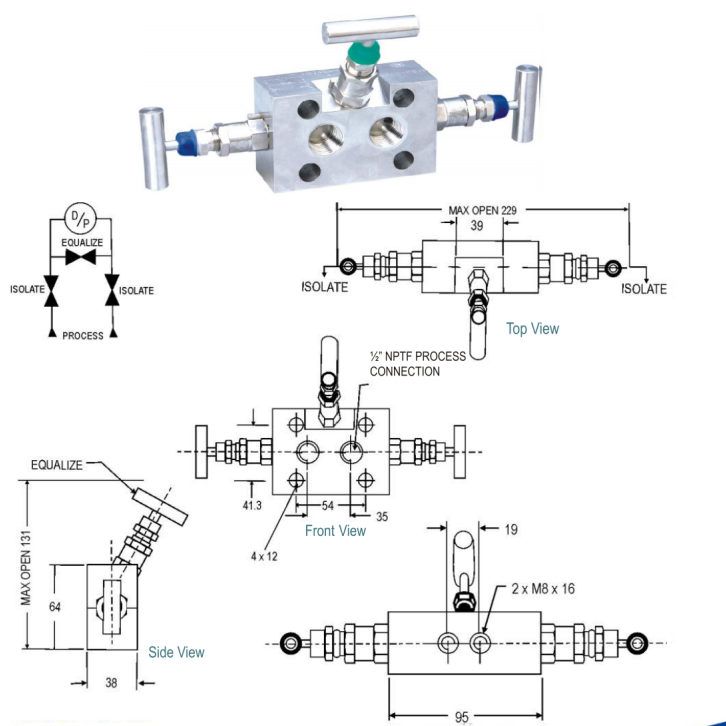

With two threaded horizontal port inlets on the front side and two Flange outlets on the back side.The two isolating bonnets are positioned on the left and right hand side,the equalizing bonnet is of angular design positioned on the top for easy operation.
Standard connection
|
Product |
Process side |
Instrument side |
|
3VA |
1/2 NPT female |
Flange |
●Anti-tamper bonnet -special design on request with locking arrangement if desired.
