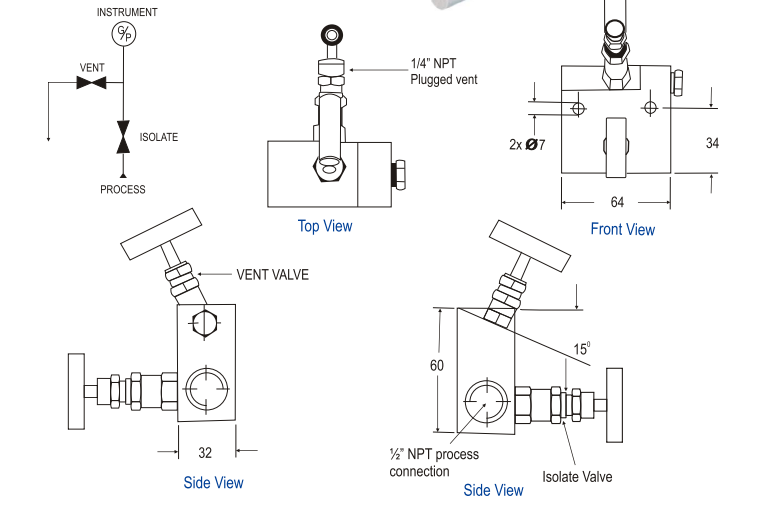

With threaded horizontal port inlet and outlet and vent/test connection on the right hand side.The venting bonnet is positioned angular on the top and the isolating bonnet on the front.

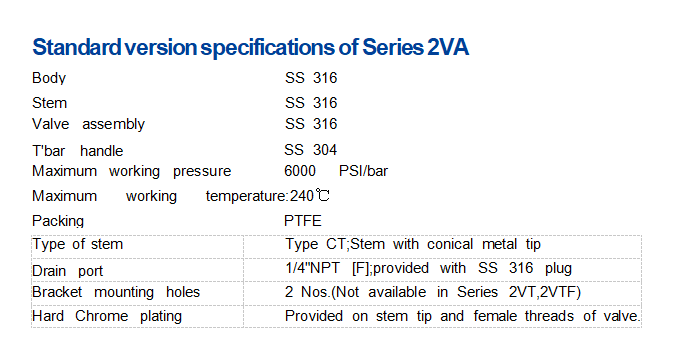

Standard version specifications of Series 2VA
Maximum working pressure ：6000 PSI/bar
Maximum working temperature：240℃
Packing ： PTFE
Standard connection
|
Product |
Process side |
Instrument side |
Vent/Test |
|
2VA |
1/2"NPT female |
1/2"NPT female |
1/4"NPT female |
Body Material：
C=Carbon Steel S=SS 316
S4=SS 304
SL=SS 316L
M4=Monel 400 M5=Monel 500 H=Hastellogy C
Body Material
C=Carbon Steel S=SS 316
S4=SS 304
SL=SS 316L
M4=Monel 400 M5=Monel 500 H=Hastellogy C
The weld prepared types are available with female plain end -suitable for socket weld. Anti-tamper bonnet-special design on request with locking arrangement if desired.
